Product Category

Technical Fabrics, Fibers, & Reinforcement

Coast-Line stocks Hexcel HexForce® woven reinforcement fabrics — Hexcel’s industry-leading line of glass, carbon/graphite, and aramid fabrics for aerospace composite manufacturing. HexForce® fabrics are globally certified and qualified by all major aircraft manufacturers.Available in plain, twill, and satin weave styles across a wide range of areal weights for wet layup, prepreg, and infusion processes.

Request a Quote

Coast-Line stocks Hexcel technical fabrics and reinforcement materials for demanding aerospace and industrial composite applications. The range includes HexForce® woven carbon, glass, aramid, and specialty fiber reinforcements in multiple weave styles and constructions, engineered to deliver the strength, stiffness, drapeability, and processing performance required for advanced composite manufacturing.

Request a Quote Today

Tell us what you need and our team will respond within one business day with pricing and availability.

Request a Quote

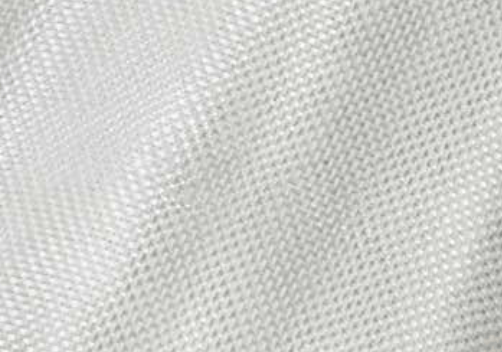

Fiberglass (E-Glass / S-2 Glass®)
High strength · Fire resistant · Electrical insulation
Density2.5 g/cc (E) · 2.46 g/cc (S-2)
Tensile StrengthS-2: ~4,890 MPa
Best ForRadomes · Interiors · Secondary
Resin Compat.Epoxy · Polyester · Vinyl ester
Aramid (Kevlar®-type)
43% lighter than glass · 2× stronger than E-glass
Density1.44 g/cc
vs. Aluminum10× stronger (specific)
Best ForBallistic · Impact · Flooring
CTE−2.4 × 10⁻⁶/°C
Carbon / Graphite
Highest strength-to-weight · Thermally conductive
Tensile Strength≥530 KSI / 3,650 MPa
Tensile Modulus≥34 MSI / 234 GPa
Tow Sizes3K · 6K · 12K · 24K
Best ForPrimary structure · Skins
Weave Style Reference
Plain Weave
Each warp yarn passes over/under each weft yarn. Most stable, lowest drape. Good for flat laminates and electrical applications.
2×2 Twill Weave
Each yarn passes over 2 then under 2. Improved drape over plain weave. Excellent balance of stability and formability.
4-Harness Satin (4HS)
One yarn over 3 others. Improved drape and smooth surface. Widely used for complex curved structures.

5H / 8-Harness Satin
Maximum drape and smooth surface finish. Best for tight radii and cosmetic outer plies. Used on aerodynamic surfaces.

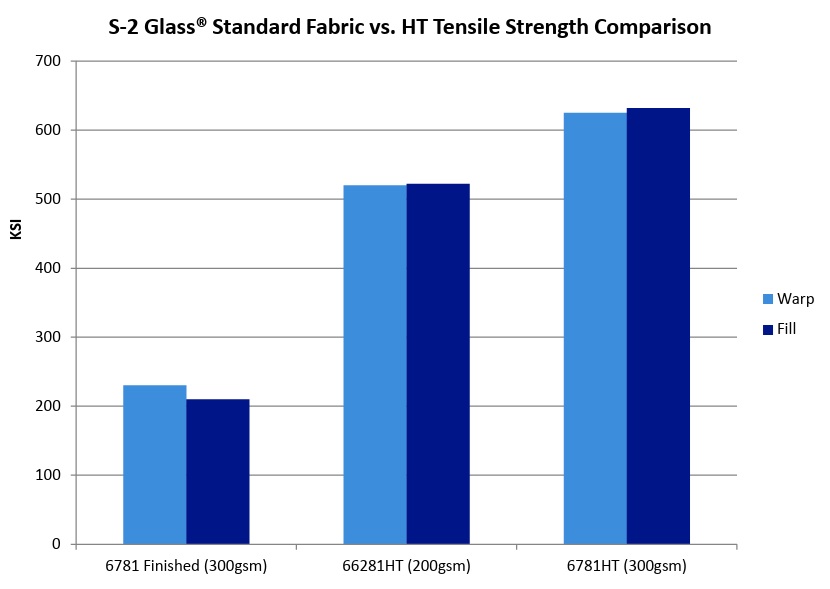

Ultra High Performance Glass Products

HT fabrics are engineered to match widely used aerospace E-glass and 3K carbon fabric styles, offering comparable weight, weave, flexibility, and handling characteristics. Fabrics such as 6781HT and 66281HT provide enhanced impact resistance and tensile strength compared with standard S-2 Glass® fiber, while offering a cost advantage over carbon. Their organic sizing eliminates the heat-cleaning process required for traditional starch-oil-sized fabrics, helping preserve fiber strength. HT fabrics are compatible with a broad range of high-temperature resin systems, including Epoxy, BMI, Phenolic, Cyanate Ester, Thermoplastics, Polyamide, Polyimide, PEI, PEEK, PAI, LCP, and other advanced composite matrices.

01

Fiberglass Fabrics

Hexcel · HexForce®
HexForce® Style 7781 E-Glass — 8-Harness Satin
The most widely used aerospace fiberglass fabric. 8-harness satin weave E-glass — the standard specification fabric for radomes, interior panelling systems, secondary structures (wing-to-body fairings, leading edges, flight control surfaces), engine nacelles, and general composite laminates. Outstanding drape for complex contoured shapes. Manufactured at Hexcel Seguin, TX.


Most Widely Used 8-Harness Satin E-Glass BMS 9-3 Radomes · Nacelles
Key Specs
FiberE-Glass
Weave8-Harness Satin (8HS)
Areal Weight~8.9 oz/yd² / ~303 gsm
SpecificationBMS 9-3
ApplicationsRadomes · Interiors · Nacelles
Resin SystemsEpoxy · Polyester · Phenolic
Hexcel · HexForce®
HexForce® Style 7628 E-Glass — Plain Weave
Standard E-glass plain weave fabric — the most commonly specified general-purpose fiberglass reinforcement for electrical laminates, reinforced plastics, and composite structures. Higher stability than satin weaves for flat panel applications. Wide range of resin system compatibility. Available in multiple finishes (F69, F81, Z-6040/F46) to optimize adhesion with specific resin chemistries.
Plain Weave E-Glass Electrical Laminates Multiple Finishes
Hexcel · HexForce®
HexForce® Style 120 E-Glass — Lightweight Plain Weave
Very lightweight E-glass plain weave fabric — a standard style for thin laminates, radome skins, and surface veils. Used in applications where minimum weight is required with the inherent fire resistance and electrical properties of E-glass. Commonly used as an outer cosmetic ply or surface finish layer over heavier structural reinforcements.



Lightweight Plain Weave Surface Veil Radome Skins
Hexcel · HexForce®
HexForce® Style 1080 E-Glass — Fine Weave
Fine weave E-glass fabric with a tight construction for smooth, high-quality surface finishes. Used for thin-ply laminate applications, printed circuit board substrates, and surface plies requiring minimal print-through from underlying reinforcement layers. Good electrical insulation properties. Compatible with standard epoxy and polyester resin systems.





Fine Weave E-Glass Smooth Surface Thin-Ply
Hexcel · HexForce®
HexForce® Style 6781 S-2 Glass® — 8-Harness Satin
Premium S-2 Glass® reinforcement in an 8-harness satin weave — significantly higher tensile strength, compressive strength, impact resistance, and temperature capability than standard E-glass. 8.92 oz/yd² (302 gsm). F81 silane finish for fast wet-out and strong adhesion with epoxy systems. Outstanding drape over complex shapes with a tight, smooth cosmetic face. Used in advanced high-performance laminates, UAV airframe skins, and protective hybrid layups with carbon fiber.
S-2 Glass® — High Performance 8-Harness Satin ~8.92 oz / 302 gsm Style 6781 F81 Finish
Radomes — RF transparency + structural performance
Interior Panels — FST-compliant cabin components
Engine Nacelles — Cowling and thrust reverser skins
Secondary Structure — Fairings, leading edges, doors
Tooling Skins — Low-cost mold face plies
Electrical Insulation — PCB substrates, shielding panels
02

Carbon / Graphite Fabrics

Hexcel · HexForce®
HexForce® AGP193-P — 3K Plain Weave Carbon (BMS 9-8)
3K plain weave dry graphite fabric — the foundational aerospace-grade carbon fabric. Never-twisted carbon fiber tows for maximum fiber integrity. Lightweight properties with extreme high strength while maintaining fatigue and fire resistance. Used extensively in aircraft structural repair, secondary structures, and composite laminates. Standard Modulus fiber: tensile strength ≥530 KSI (3,650 MPa), modulus ≥34 MSI (234 GPa). Widely qualified by Boeing, Airbus, and defense OEMs.
Aerospace Grade 3K Plain Weave BMS 9-8 Never-Twisted Tow Structural Repair
Key Specs
Tow Size3K
WeavePlain Weave
Areal Weight~6.0 oz/yd² / ~193 gsm
Tensile Strength≥530 KSI / 3,650 MPa
Tensile Modulus≥34 MSI / 234 GPa
Specification BMS 9-8
Hexcel · HexForce®
HexForce® BMS 9-8 3K-135-8H — 8-Harness Satin
BMS 9-8 qualified 3K carbon in an 8-harness satin weave. ~135 gsm areal weight. Maximum drape characteristics for complex compound curved aerospace structures. Tight, smooth surface finish suitable as outer cosmetic ply. Used on aerodynamic surfaces, nacelle skins, and complex-shaped primary and secondary structural components where both OEM qualification and excellent formability are required.
3K 8-Harness Satin BMS 9-8 ~135 gsm Maximum Drape
Hexcel · HexForce®
HexForce® AGP280-5H — 5-Harness Satin Carbon
5-harness satin dry graphite fabric (~280 gsm). Intermediate drape between plain weave and 8HS — a balance of structural performance, surface quality, and formability. Highly suited for fuselage panels, wing skins, and structural aerospace components requiring good drape over moderate curvature. Compatible with epoxy, BMI, polyimide, and thermoplastic resin systems.

5-Harness Satin ~280 gsm Wing Skins Epoxy · BMI Compatible
Hexcel · HexForce®
HexForce® AGP370-5H — Heavy 5-Harness Carbon
Heavy-weight 5-harness satin carbon fabric — 11.1 oz/yd² (376 gsm). Designed for structural applications requiring high build-up rate per ply and maximum fiber volume in thick laminates. Used in primary structural components, thick-section tooling skins, and structural spars where minimizing ply count while achieving target thickness is required. Widely qualified by major aircraft OEMs.

5-Harness Satin 11.1 oz / 376 gsm Thick Laminates Primary Structure
Hexcel · HexForce®
HexForce® Style 282 — 3K Plain Weave (Industrial)
3K plain weave dry graphite fabric, industrial grade. Same never-twisted tow construction as the aerospace AGP193-P, utilizing many of the same carbon fibers but with less extensive documentation. Lightweight with extreme high strength and fatigue resistance. Cost-effective choice for non-flight-critical applications, tooling, prototyping, and development programs where full BMS traceability is not required.
3K Plain Weave Industrial Grade Tooling & Prototyping Cost Effective
Hexcel · HexForce®
HexForce® 12K Carbon Fabrics — Wide Range
12K tow carbon woven fabrics developed to provide flexibility of lightweight materials with improved economics over 3K fabrics. Available in plain, twill, and satin weaves from 98 to 670 gsm. The larger tow size results in lower cost per unit weight while maintaining the structural properties expected of Hexcel carbon fiber. Used in large-area structural parts, wind energy, and industrial composite applications.
12K Tow 98–670 gsm Range Plain · Twill · Satin Cost Efficient
Hexcel · HexForce®
HexForce® PrimeTex® ZB — Smooth Closed-Weave Carbon
PrimeTex® is a range of carbon fabrics processed for a smooth, closed weave and enhanced uniform cosmetic appearance. Fiber tows are flatly woven and spread in both warp and weft directions — producing a flatter, denser fabric surface with minimal fiber crimp. Outstanding surface aesthetics for visible carbon fiber applications. Can be epoxy powdered on one or two sides to facilitate preforming and dimensional stabilization.
PrimeTex® — Cosmetic Grade Flat Spread Tows Closed Weave Epoxy Powder Option
Hexcel · HexForce®
HexForce® Carbon Unidirectional (UD) Fabric
Nonwoven unidirectional carbon reinforcements with 99% of areal weight in the 0° direction, stabilized by a thin proprietary warp thread. Maximum directional stiffness and strength efficiency — the most structurally efficient form of carbon reinforcement for primary load-carrying applications. Available in standard and intermediate modulus (IM2) and high modulus (HM63) fiber grades for performance-critical aerospace structures.
Unidirectional 99% 0° Areal Weight SM · IM2 · HM63 Grades Primary Structure
Weave Style Reference
Style / Product Weave Tow Areal Weight Grade
AGP193-PPlain Weave3K~193 gsm / 6.0 ozAerospace BMS 9-8
BMS 9-8 3K-135-8H8-Harness Satin3K~135 gsm / 4.0 ozAerospace BMS 9-8
AGP280-5H5-Harness Satin3K~280 gsm / 8.4 ozAerospace
AGP370-5H5-Harness Satin6K~376 gsm / 11.1 ozAerospace
Style 282Plain Weave3K~193 gsm / 6.0 ozIndustrial
12K FabricsPlain / Twill / Satin12K98–670 gsm rangeIndustrial
PrimeTex® ZBFlat / Closed Weave3K / 6KVariousAerospace / Cosmetic
UD CarbonUnidirectionalSM / IM2 / HM63VariousAerospace

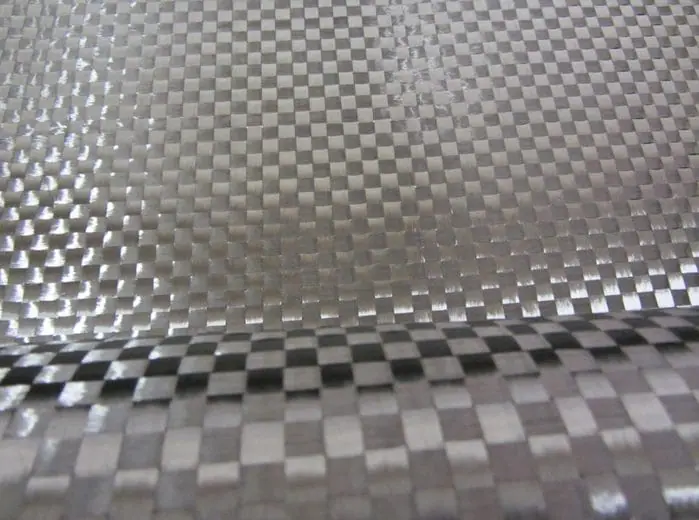

Hexcel Primetex® Lightweight Gap-Free Fabrics

PrimeTex® is a carbon fiber weaving technology in which the fibers are spread in both the warp and weft directions to produce a uniform weave and gap-free finish. The spreading process increases the closure factor in the fabric by 5-8% compared to conventional weaving processes (depending on the carbon tow and FAW). Laminates made with PrimeTex® have reduced porosity, resulting in higher mechanical performance.

When used in sandwich structures the thin PrimeTex® skins are highly resistant to water ingress. PrimeTex® Very Light Weight 98 g/m² is the lightest 3K gap-free fabric ever produced, permitting the cost-effective use of very light plies in composite lay-ups. PrimeTex® Very Light Weight is also 12% thinner than conventional 1K carbon fabrics, resulting in lighter structures making it ideal for surface plies, sandwich construction, structural parts or any other composite components requiring extreme lightness.

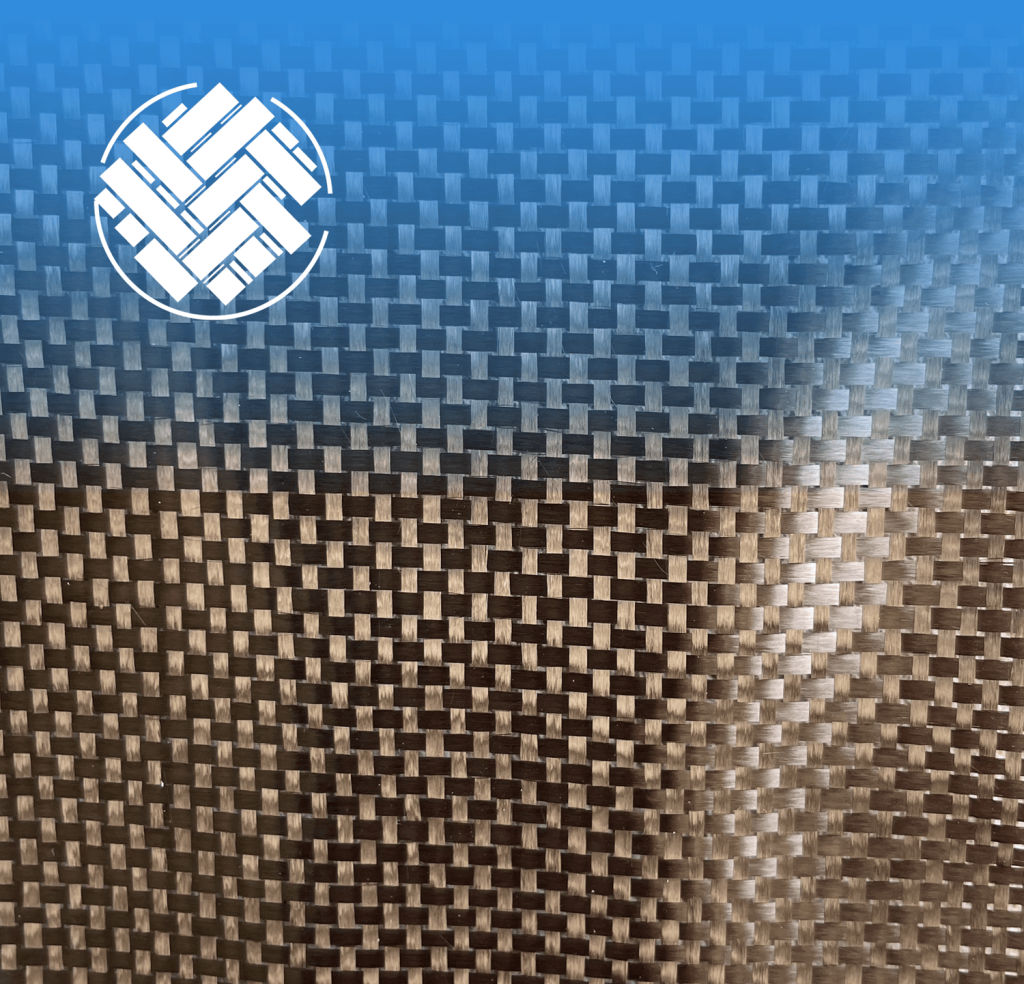

Hexcel Launches New 1K Reinforcement Fabric for Lightweight Composite Applications

Hexcel has expanded its HexForce® portfolio with new 1K woven reinforcement fabrics designed for demanding composite applications. Offering areal weights as low as 60 GSM, the fabrics maintain the mechanical performance required across multiple industries. Vertically integrated fiber and fabric production enables Hexcel to deliver cost-effective, domestically sourced materials. The 1K fabrics are suitable for golf shafts, hockey sticks, automotive components, aerospace, defense, Advanced Air Mobility platforms, and space applications. Produced to stringent aerospace standards, the new range complements Hexcel’s existing 3K, 6K, 12K, and 24K options, giving customers greater flexibility across diverse applications, performance requirements, and global markets worldwide.

03

Quartz

Hexcel · HexForce®
HexForce® Quartz Woven Fabric — Radome & High-Temp Structures
Pure fused silica (quartz) woven fabric — the premier reinforcement for aerospace radomes where RF transparency, dimensional stability, and structural integrity must coexist. Quartz fiber offers an extremely low dielectric constant (ε ≈ 3.78) and near-zero dielectric loss tangent — virtually invisible to radar and microwave frequencies, outperforming both E-glass and S-2 Glass®. An exceptionally low CTE of 0.54 × 10⁻⁶/°C ensures dimensional stability through the extreme thermal cycling of aerospace and space service. Capable of continuous service to 1050°C (1920°F). Available in plain, twill, and satin weave styles; custom preform shapes for structural radome shells available on request from Hexcel Specialty Reinforcements.
Radome Primary Reinforcement Pure Fused Silica ε ≈ 3.78 · RF Transparent Up to 1050°C / 1920°F Ultra-Low CTE
Key Properties
FiberPure Fused Silica (Quartz)
Dielectric Constant~3.78 @ 10 GHz
CTE0.54 × 10⁻⁶/°C
Max Service Temp1050°C (1920°F)
Weave StylesPlain · Twill · Satin
Primary UseRadomes · Space · Defense
04

Ceramic Fabrics

3M · Nextel™
3M™ Nextel™ Ceramic Fabric 312 — Thermal & Fire Barrier
Woven fabric from Nextel 312 continuous aluminoborosilicate ceramic fiber — the standard aerospace ceramic textile for flame barriers, thermal shielding, and burn-through protection. Continuous use temperature to 1200°C (2192°F). Flexible and lightweight even after prolonged high-temperature exposure, unlike glass or quartz which become brittle. Used for engine firewalls, aircraft thermal blankets, wiring harness insulation, gaskets, seals, and spacecraft micrometeorite debris shields. Resistant to thermal shock, chemical attack, and dimensional change at operating temperature.

Flame Barrier · Thermal Shield Aluminoborosilicate Up to 1200°C / 2192°F Engine Firewalls · Blankets
3M · Nextel™
3M™ Nextel™ Ceramic Fabric 440 — High-Temperature Insulation
Woven fabric from Nextel 440 aluminoborosilicate ceramic fiber — higher alumina content than Nextel 312, delivering improved strength retention at elevated temperatures. Continuous use to 1300°C (2372°F). Used for rocket motor insulation blankets, investment casting mold reinforcement, and demanding high-temperature seals and curtains. Lower shrinkage at temperature than Nextel 312. Remains flexible and handleable through repeated thermal cycling — a critical advantage over rigid ceramic alternatives in maintenance and overhaul environments.


Higher Alumina vs. Nextel 312 Up to 1300°C / 2372°F Rocket Motor Insulation Low Shrinkage
3M · Nextel™
3M™ Nextel™ Structural Fibers 610 & 720 — CMC Reinforcement
High-performance continuous ceramic oxide fibers for structural reinforcement in metal matrix (MMC) and ceramic matrix composites (CMC). Nextel 610 (alumina) provides outstanding single-filament tensile strength — used in hot gas-washed aircraft exhaust components and heat treatment carriers. Nextel 720 (aluminosilica) offers superior creep resistance — used in creep-critical exhaust components and next-generation oxide-oxide CMC (Ox-Ox CMC) engine parts replacing titanium and nickel alloys. Available as rovings, chopped fiber, and woven fabrics.
CMC Structural Reinforcement 610 — Max Tensile Strength 720 — Max Creep Resistance Ox-Ox CMC Engine Parts

Why Source HexForce® Fabrics from Coast-Line?

OEM Qualified Stock

We stock BMS 9-3 and BMS 9-8 qualified fabrics with full documentation and complete traceability to Hexcel mill certificates for every roll.

All Three Fiber Types

Glass, aramid, and carbon from a single distributor source, simplifying your approved supplier list and reducing procurement overhead.

Flexible Quantities

From single-yard sample orders for qualification to multi-roll program orders. Minimum order quantities vary by style, so contact us to confirm.

AS9120 Certified

Full AS9120-certified documentation package available, including Certificate of Conformance, material traceability, and supplier qualification records.
